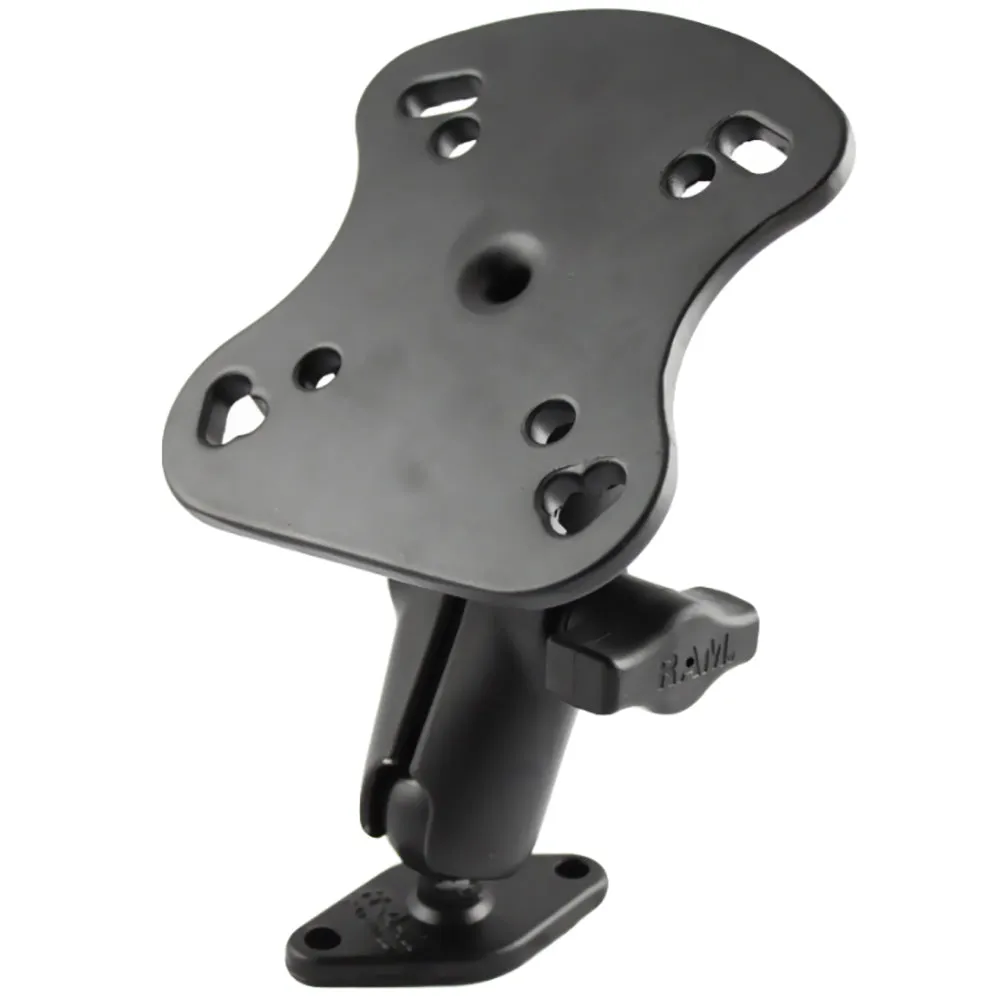

1" Ball Marine Electronics Mount with Diamond Base
The RAM-B-107U-238 consists of a double socket arm, diamond base and connecting Humminbird/Apelco marine base. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The diamond base contains two holes 1.912" from center to center, positioned at both ends of the base. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
RAM 1" Ball Marine Electronic Mount with Diamond Base for the Humminbird 100-700 Series, Matrix Series and Lowrance Elite-5 Series.
Features:
- Overall Height: 5"
- Weight Capacity: To 2.25kg approximately 5 lbs
- Ball Size: 1: Rubber "B" Ball Size
- Material: Powder Coated Marine Grade Aluminum
- Note: The "U" in the part number reflects product will be packaged in a poly bag
- Weight: 0.68 lbs
Specifications:
- Type: Mounting Brackets
- Box Dimensions: 1"H x 1"W x 2"L WT: 1.2 lbs
